Developer Guide
Table of contents
Acknowledgements
These are the external libraries that we have used for developing our application
Getting Started
Please refer to the User Guide for more details on the input/output of the application
General Overview

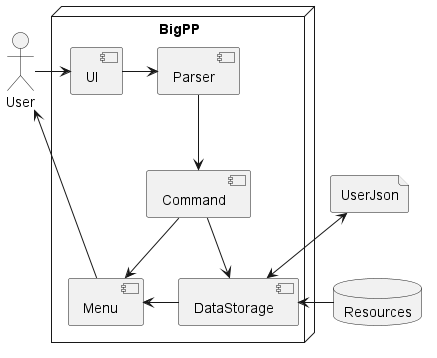

below is the overall architecture diagram for how BigPP works.
The program will first load the UserJson
and files in the Resources
folder to populate its internal memory of PCLists
and ComponentLists
. This will be stored in its DataStorage
. The User
’s interaction with the UI
will be parsed
into a command
which would update the DataStorage
and eventually update the Menu
which is displayed back to the User
. This would continue until the User
exits the program, which would result in the data stored in DataStorage
being saved into the UserJson
.
Design and implementation
UI class

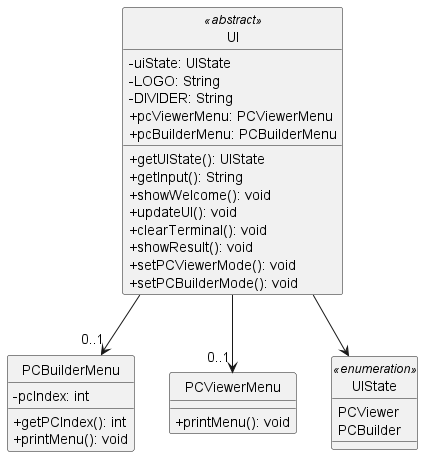

Below is the Class diagram for the UI class
The UI
Class serves as the connection between the user and BigPP. It is responsible for the following key actions
- Initialization: Upon start up of BigPP, the instance of
DataStorage
is parsed into theupdateUI
method ofUI
to give it the ability to access resources for BigPP.UIState
is set to bePCViewer
. - Functionality
- Shows welcome message to the user
- Gets input from the user
- Sets the
UIState
of BigPP depending on user command - Updates the user interface to show the menu depending on the
UIState
- Clears the terminal after every user command
- Shows feedback to the user after every user command
- Behavior: The
UI
Class acts as the intermediary between the user and BigPP.UIState
ofUI
can change betweenPCViewer
andPCBuilder
which would result in different commands available to the user. This makes the possible commands that can be given clear to the user.
In summary, UI gives crucial feedback to the user such as the menu of possible commands based on the current menu and results of a given command.
DataStorage class

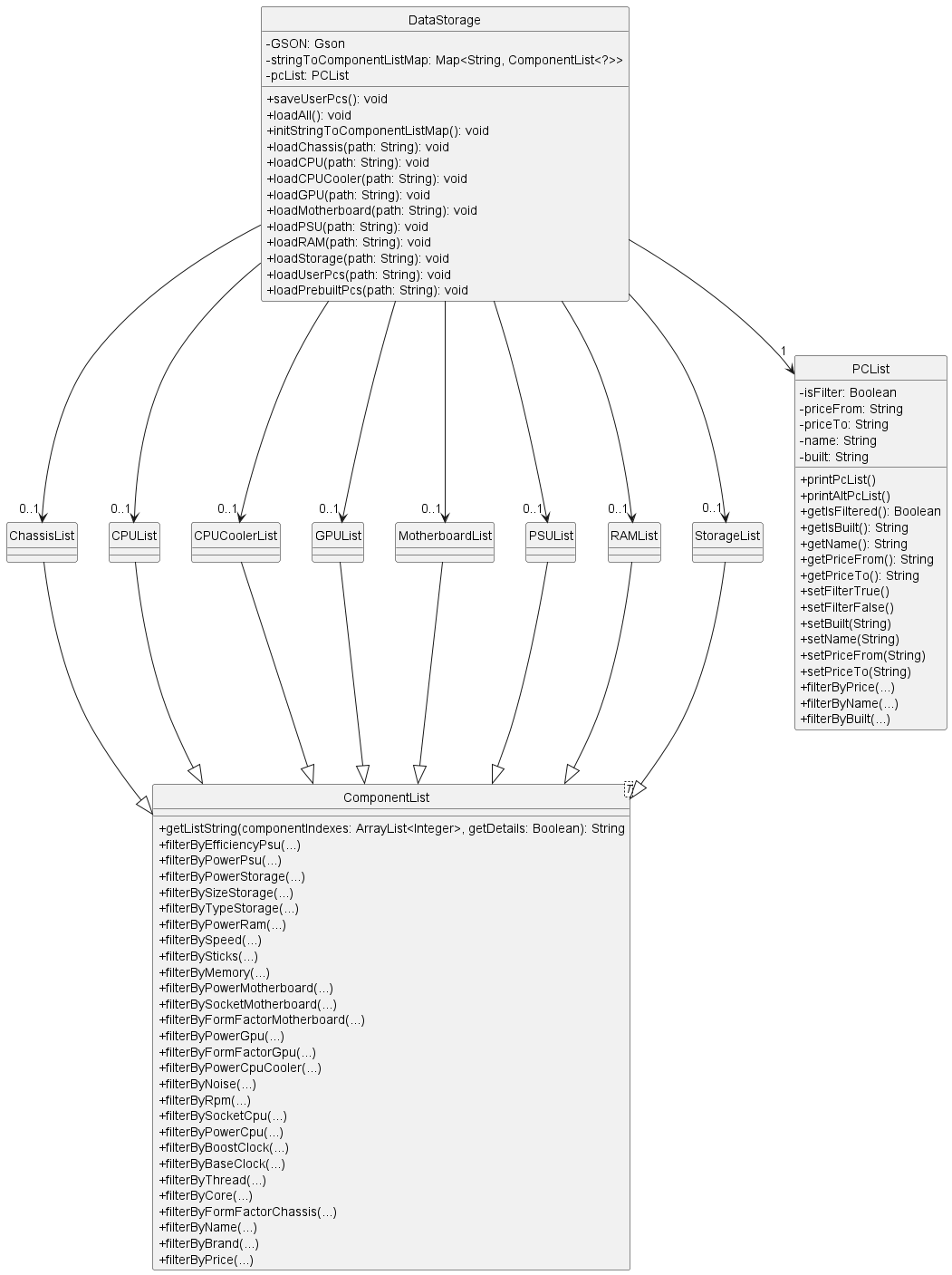

Below is the Class diagram for the DataStorage class:
The DataStorage
class serves as a centralized storage and management system for lists of components and PC builds in the application. It is responsible for the following key actions:
-
Initialization: Upon creation, the
DataStorage
class initializes itsstringToComponentListMap
andpcList
properties, which contain instances ofComponentList
andPCList
, respectively. These lists are used to manage components and PC builds within the application. -
Functionality: The
DataStorage
class- Loads the entire
user.json
file that is saved in the storage of the user’s computer. This json file will contain all of the PC builds that the user has made in his prior usages of BigPP. - Loads all of the pre-built PC builds that are in the
Resources
folder that have been pre-set by us for the user to view. - Loads all of the data that is in the
Resources
folder which stores pre-loaded data of BigPP which includes all of the component data that is available in our database. - Saves all the user data into
user.json
file that is saved in the storage of user’s computer when the user inputs the “bye” command.
- Loads the entire
-
Behavior: The
DataStorage
class acts as an intermediary between the application and the stored lists of components and PC builds. It helps to maintain a clean separation of concerns by providing a unified interface for handling data storage and retrieval. This allows the rest of the application to interact with the data easily.
In summary, the DataStorage
class is responsible for managing lists of components and PC builds, providing methods to load all the data needed, and interact with this loaded data.
===== loadChassis() method =====
This Sequential analysis will show how the loadChassis() method works, this will also serve as an example for all the other load methods that the DataStorage class has.
The loadChassis
method reads chassis information from a JSON file and populates a ChassisList
with the data.
When the loadChassis
method is called with a file path as its argument, it first gets a ClassLoader
instance from the DataStorage
class and uses it to create an InputStream
for the specified file. A BufferedReader
is then created to read the contents of the file.
The JSON file is read and concatenated into a single string using reduce
. The GSON library is then used to deserialize the JSON string into a Map<String, Chassis>
, with the key being the name of the chassis and the value being a Chassis
object.
Next, the method iterates over the chassisMap
and sets the name attribute of each Chassis
object to its corresponding key in the map.
Finally, the method iterates over the chassisMap
again, adding each Chassis
object to the ChassisList
stored in the stringToComponentListMap
HashMap.

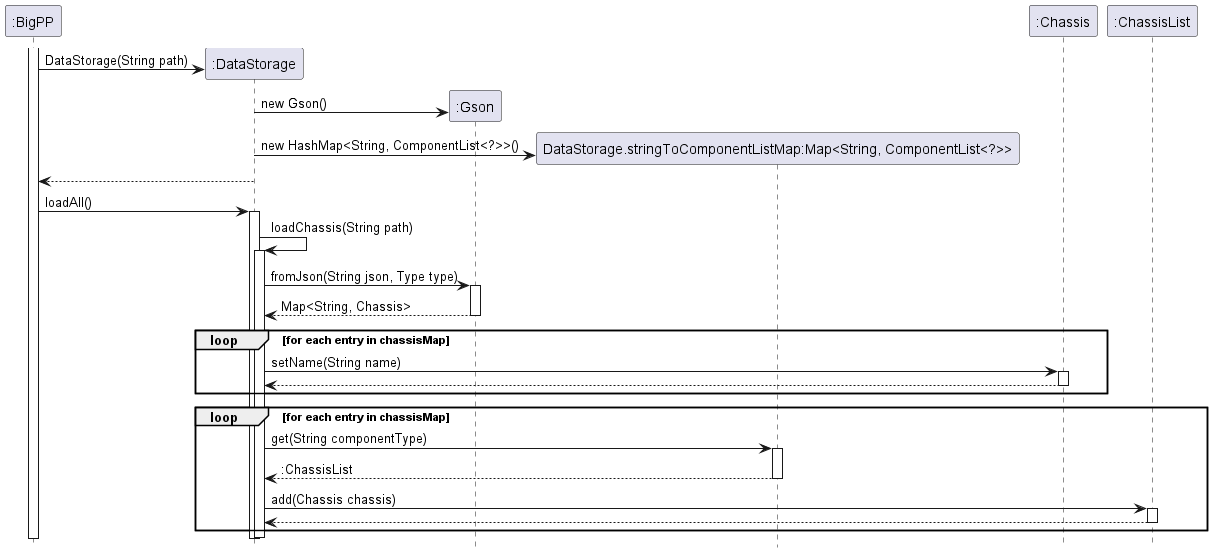

A UML sequence diagram showing the interactions between the different objects involved in handling this method can be found below:
Parser class

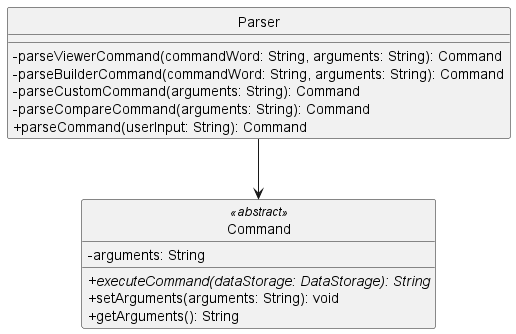

The UML class diagram shows the features of the Parser class:
The purpose of the Parser class is to parse the user input into commands for execution. With reference to the diagram, the Parser class does not have any attributes and only contains public methods for parsing of the user input. The methods in the Parser class creates a subclass which inherits from the abstract superclass Command class. From the diagram, Command class has a private attribute named arguments which stores the user inputs as a String. The Command class contains methods that help to set and retrieve the private attribute in the class. Overall, this class diagram provides an overview of the purpose of the Parser class.
PC Class Architecture
(Note: all private properties have getters and setters but have been omitted to make diagram more readable)

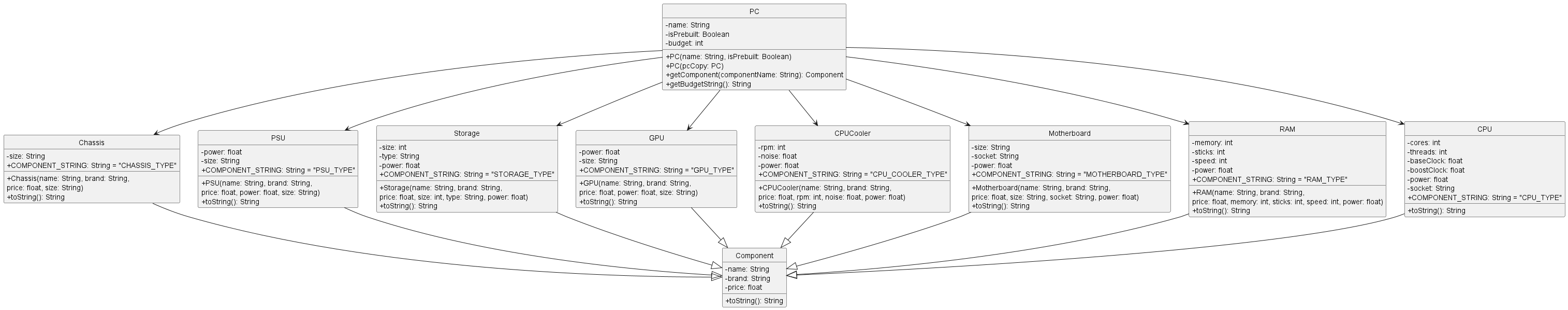

This UML class diagram shows the classes and their relationships in a computer system, which is represented by the PC
class. The PC class has several attributes, including name, isPrebuilt, cpu, cpuCooler, gpu, motherboard, ram, storage, psu, chassis, and budget.
The CPU
, CPUCooler
, GPU
, Motherboard
, RAM
, Chassis
, PSU
and Storage
classes are components that can be used to build a PC
object. Each component class has its own attributes and methods specific to that component.
The Component
class is an abstract class that represents a generic computer component. It has attributes such as name, brand, and price, as well as methods to get and set those attributes.
The PC
class has methods to set and get the components of a PC
object, as well as methods to set and get the name, isPrebuilt, and budget attributes.
Overall, this class diagram provides a high-level overview of the components that make up a computer system and their relationships to each other.
Command class
===== ViewerAddCommand
method (viewer mode) =====
This sequential analysis will show how the ViewerAddCommand
method works, this will also serve as an example for the ViewerDeleteCommand
and ViewerViewCommand
.
When the user inputs a command of the form add [PC_NAME]
in viewer mode, it is parsed by the Parser.parseViewerCommand
method which
recognises the first word as add
and creates a new ViewerAddCommand object while passing the argument of type String which was part of the command.
The ViewerAddCommand.executeCommand()
method is then executed as part of the loop inside BigPP.runLoopUntilExit()
.
The ViewerAddCommand
then calls a method to retrieve the argument. The ViewerAddCommand
checks if the argument is empty and throws an PPException
if it is empty. A PC
object is created with the argument as
an input. The add
method is called by accessing the dataStorage
and pcList
classes to add the PC
object to the list.
Finally, a message is returned to inform the user that the ViewerAddCommand
method has been executed successfully.

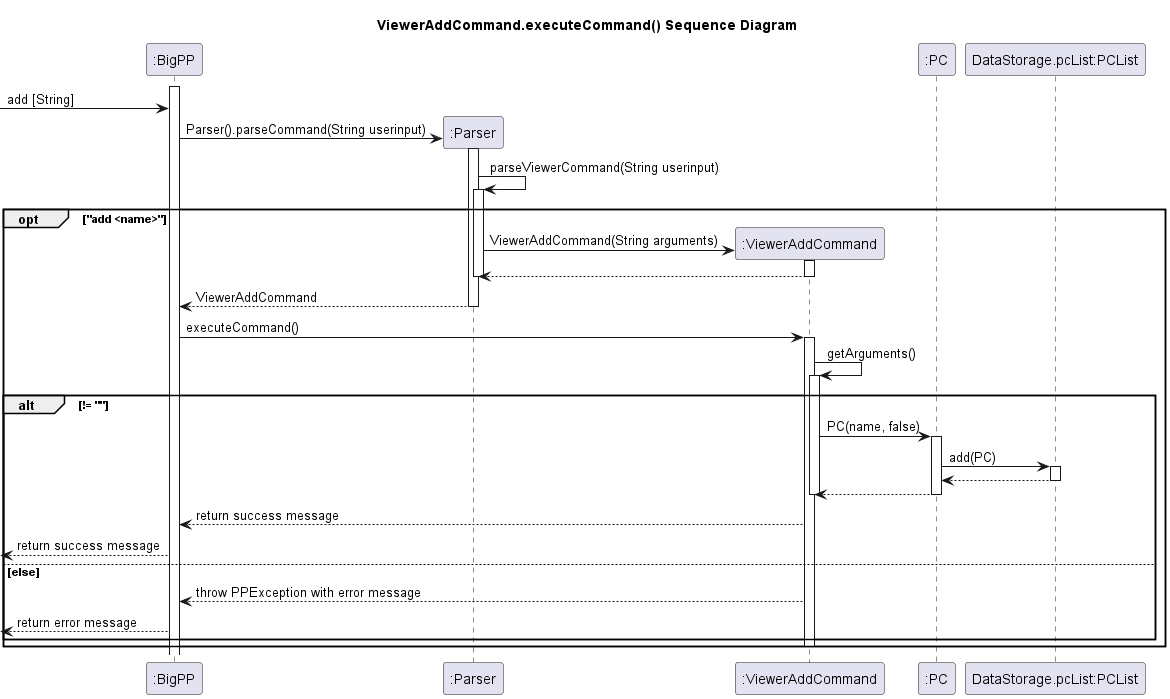

A UML sequence diagram showing the interactions between the different objects involved in handling this method can be
found below:
===== BuilderListComponentCommand
(builder mode) =====
The BuilderListComponentCommand
command prints out a formatted list of all available components of type COMPONENT
.
When the user inputs a command of the form list [COMPONENT]
in builder mode,
it is parsed by the Parser.parseBuilderCommand
method which recognizes the first word as
list
and creates a new BuilderListComponentCommand
object while passing as argument the component
which was part of the command.
The BuilderListComponentCommand.executeCommand()
method is then executed as part of the loop
inside BigPP.runLoopUntilExit()
.
It first verifies:
- That the component argument is not empty. If it is then it throws a
BuilderMissingComponentException()
- That the component given by the user exists in the database. If it doesn’t then it throws a
BuilderMissingComponentException()
It then uses the stringToComponentListMap
HashMap from data storage to get the ComponentList associated
with the component string input by the user (e.g. cpu
). The stringToComponentListMap
HashMap is initialized and
filled when the program is first run using DataStorage.initStringToComponentListMap()
and maps component names
(e.g. cpu
) to their corresponding ComponentList
object (e.g. an object of type CPUList
).
The ComponentList
class inherits from ArrayList
but additionally implements the getListString()
method which
returns a formatted list of all the components in the ComponentList
object.
The ComponentList
objects for each component are instantiated and populated in the DataStorage.loadAll
method
by loading the data in resources/COMPONENT_NAME.json
using the GSON
library.
The program then checks if the user provided any flags to filter the output of the component command (e.g. by name,
brand, price, etc.). If they did, then the program filters out the components not meeting the provided flags and
creates a ComponentList
containing all the components which do meet the provided flags.
The program then uses the ComponentList.getListString()
method to get a formatted list of the components
of the desired type, which it then outputs to the user.

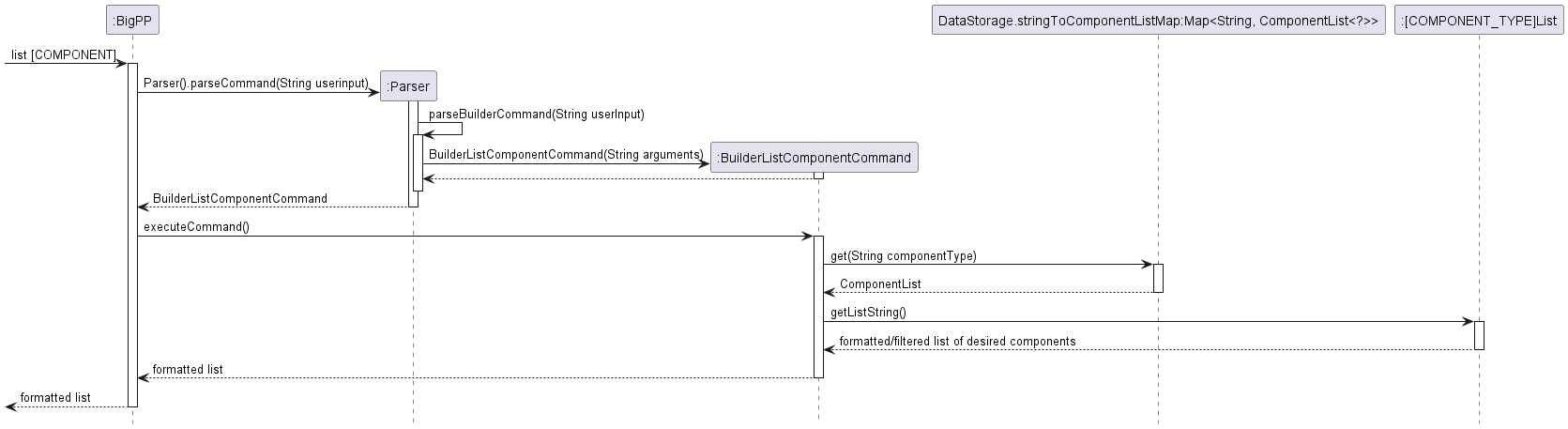

A UML sequence diagram showing the interactions between the different objects involved in handling this command can be found below:
Object Diagram

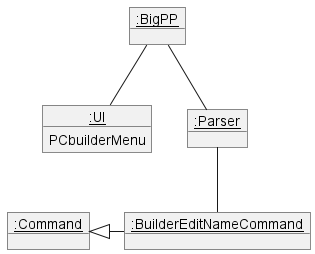

In these object diagrams, a typical flow of the program is shown. The first diagram shows the flow of the program when the user is in the viewer mode and adds a PC. Then, the second diagram shows the flow of the program when the user is in the builder mode and edits the name of the PC added.
===== Viewer Mode =====
When the program first starts, the BigPP
class is instantiated and the run()
method is called. The run()
method calls the runLoopUntilExit()
method which is a loop that runs until the user exits. The UI
calls the getInput()
method to get the user input. The Parser
class then parses the user input (“add MyPC”). The parseCommand
method calls the ViewerAddCommand
method with the name of the PC as the argument. The ViewerAddCommand
calls its executeCommand method. This adds a PC named “MyPC”.
===== Builder Mode =====
The user can enter the edit PC_INDEX
command to edit a PC and enter Builder Mode. Now in builder mode, the user can enter the name NAME
command to edit the name of the PC. The Parser
class then parses the user input (“name MyEditedPC”). The parseBuilderCommand
method calls the BuilderNameComponentCommand
method with the name of the PC as the argument. The BuilderNameComponentCommand
calls its executeCommand method. This edits the name of the PC to “MyEditedPC”.
Appendix: Requirements
Product scope
Target user profile
People who want to build PC’s and keep track of their builds.
Value proposition
- Saves time and effort in selecting PC components
- Helps users avoid compatibility issues or mistakes
- Enables users to build cost-effective systems.
- Prebuilt PCs
Non-Functional Requirements
- Java 11 or above installed
- Program built to support only single user
- Size of terminal
User Stories
Version | As a … | I want to … | So that I can … |
---|---|---|---|
v1.0 | new user | See usage instructions | Refer to them when I forget how to use the application |
v1.0 | user | Create a new custom PC | Start a fresh PC build |
v1.0 | user | Add and delete computer components | Build my computer and remove unwanted builds |
v1.0 | user | View the components of my PC build | See the entire PC build and which components have been chosen |
v1.0 | user | Edit a PC build | Customize the components of a PC build to my liking |
v1.0 | user | Select and unselect componetns from the PC | Choose and change the components as i wish |
v1.0 | user | Change the name of my PC build | Identify my different PC build by their custom name |
v1.0 | frugal user | Add a budget to my build | Ensure that my PC build does not exceed what i am willing to spend |
v1.0 | user | List all the selectable components of a certain type | View the available options for a certain component |
v2.0 | comparitive user | Compare the specifications bettween two components | Have a side by side comparison and choose the better component |
v2.0 | user | Filter the PC builds by ther name/budget/completion | View all PC build that satisfy my requirements |
v2.0 | Experienced user | Add custom components | Add components to my build that are not availabe in the component list |
v2.0 | new builder | Be able to see if components are not compatible | Avoid building PC with incompatible parts |
v2.0 | Experienced user | Filter the component list by specifications | Find specific components that meet my criteria |
Instructions for manual testing
- Download the latest
.jar
file from this link. - Open the folder that the
.jar
file is in and run the program in your terminal usingjava -jar bigpp.jar
.- Expected output:
User file does not exist. Creating new user file. User PCs found, loading... _____ _____ _____ _____ _____ /\ \ /\ \ /\ \ /\ \ /\ \ /::\ \ /::\ \ /::\ \ /::\ \ /::\ \ /::::\ \ \:::\ \ /::::\ \ /::::\ \ /::::\ \ /::::::\ \ \:::\ \ /::::::\ \ /::::::\ \ /::::::\ \ /:::/\:::\ \ \:::\ \ /:::/\:::\ \ /:::/\:::\ \ /:::/\:::\ \ /:::/__\:::\ \ \:::\ \ /:::/ \:::\ \ /:::/__\:::\ \ /:::/__\:::\ \ /::::\ \:::\ \ /::::\ \ /:::/ \:::\ \ /::::\ \:::\ \ /::::\ \:::\ \ /::::::\ \:::\ \ ____ /::::::\ \ /:::/ / \:::\ \ /::::::\ \:::\ \ /::::::\ \:::\ \ /:::/\:::\ \:::\ ___\ /\ \ /:::/\:::\ \ /:::/ / \:::\ ___\ /:::/\:::\ \:::\____\ /:::/\:::\ \:::\____\ /:::/__\:::\ \:::| |/::\ \/:::/ \:::\____\/:::/____/ ___\:::| | /:::/ \:::\ \:::| |/:::/ \:::\ \:::| | \:::\ \:::\ /:::|____|\:::\ /:::/ \::/ /\:::\ \ /\ /:::|____| \::/ \:::\ /:::|____|\::/ \:::\ /:::|____| \:::\ \:::\/:::/ / \:::\/:::/ / \/____/ \:::\ /::\ \::/ / \/_____/\:::\/:::/ / \/_____/\:::\/:::/ / \:::\ \::::::/ / \::::::/ / \:::\ \:::\ \/____/ \::::::/ / \::::::/ / \:::\ \::::/ / \::::/____/ \:::\ \:::\____\ \::::/ / \::::/ / \:::\ /:::/ / \:::\ \ \:::\ /:::/ / \::/____/ \::/____/ \:::\/:::/ / \:::\ \ \:::\/:::/ / ~~ ~~ \::::::/ / \:::\ \ \::::::/ / \::::/ / \:::\____\ \::::/ / \::/____/ \::/ / \::/____/ ~~ \/____/ Welcome to BigPP! =================================================== PC viewer Here is the list of PC Builds: 1.Prebuilt-PC: [beginner] - $917.28/infinite - Complete 2.Prebuilt-PC: [intermediate] - $1710.74/infinite - Complete 3.Prebuilt-PC: [advanced] - $2339.74/infinite - Complete What would you like to do? ===================================================
- Expected output:
- Read through user guide to get detailed documentation on functionality and commands of application.
- See all available commands by using
help
.- Expected output (PCViewer Mode):
Here are the list of valid commands: _____________________________________________________ | Command Type | Command Usage | |-------------------------|-------------------------| | Add new PC | add PC_NAME | | Edit PC | edit PC_INDEX | | View PC Specs | view PC_INDEX | | Delete PC | delete PC_INDEX | | Filter PC List | filter FILTER_FLAGS | | Exit program | bye | ----------------------------------------------------- For more detailed documentation on commands, please refer to our user guide!
- Expected output (PCBuilder Mode):
Here are the list of valid commands: ______________________________________________________________________________ | Command Type | Command Usage | |-------------------------|--------------------------------------------------| | List Component | list COMPONENT_TYPE [-COMPONENT_FLAG lIST_FLAG] | | Select Component | select COMPONENT_TYPE COMPONENT_INDEX | | Unselect Component | unselect COMPONENT_TYPE | | Compare Components | compare COMPONENT_TYPE INDEX_1 & INDEX_2 | | Change Budget | budget POSITIVE_INTEGER | | Change PC Name | name PC_NAME | | Create Custom Component | custom COMPONENT_TYPE SPEC1|SPEC_2|... | | Back Command | back | | Exit program | bye | ------------------------------------------------------------------------------ For more detailed documentation on commands, please refer to our user guide!
- Expected output (PCViewer Mode):
- View Prebuilt PC specifications using
view 1
- Expected output:
=================================================== PC viewer Here is the list of PC Builds: 1.Prebuilt-PC: [beginner] - $917.28/infinite - Complete 2.Prebuilt-PC: [intermediate] - $1710.74/infinite - Complete 3.Prebuilt-PC: [expert] - $2339.74/infinite - Complete What would you like to do? =================================================== Prebuilt-PC: [beginner] - $917.28/infinite - Complete Power Consumption: 234.5W/850.0W Components: CPU : Intel core i3-10100 CPU Cooler : Thermalright AXP90-X36 GPU : Gigabyte GAMING OC RTX3050 Motherboard: Asus Prime Z590-P WiFi RAM : G.Skill Ripjaws X 8 GB Storage : ADATA XPG SPECTRIX S40G RGB PSU : SeaSonic FOCUS PLUS 850 Gold Chassis : Fractal Design Pop XL Air
- Expected output:
- Create a new PC using
add newPC
.- Expected output:
=================================================== PC viewer Here is the list of PC Builds: 1.Prebuilt-PC: [beginner] - $917.28/infinite - Complete 2.Prebuilt-PC: [intermediate] - $1710.74/infinite - Complete 3.Prebuilt-PC: [expert] - $2339.74/infinite - Complete 4.Custom-PC: [newPC] - $0.0/infinite - Incomplete What would you like to do? =================================================== Custom PC: [ newPC ] has been created
- Expected output:
- Edit the newly created PC by using
edit 4
.- Expected output:
=================================================== PC builder Custom-PC: [newPC] - $0.0/infinite - Incomplete Power Consumption: 0.0W/0W Components: CPU : - Not Selected - CPU Cooler : - Not Selected - GPU : - Not Selected - Motherboard: - Not Selected - RAM : - Not Selected - Storage : - Not Selected - PSU : - Not Selected - Chassis : - Not Selected - What would you like to do? =================================================== Currently editing PC: newPC
- Expected output:
- Set a Budget for the build by using
budget 1000
.- Expected output:
=================================================== PC builder Custom-PC: [newPC] - $0.0/infinite - Incomplete Power Consumption: 0.0W/0W Components: CPU : - Not Selected - CPU Cooler : - Not Selected - GPU : - Not Selected - Motherboard: - Not Selected - RAM : - Not Selected - Storage : - Not Selected - PSU : - Not Selected - Chassis : - Not Selected - What would you like to do? =================================================== Current build budget is now: $1000.00
- Expected output:
- List all cpu components available by using
list cpu
.- Expected output:
=================================================== PC builder Custom-PC: [newPC] - $0.0/infinite - Incomplete Power Consumption: 0.0W/0W Components: CPU : - Not Selected - CPU Cooler : - Not Selected - GPU : - Not Selected - Motherboard: - Not Selected - RAM : - Not Selected - Storage : - Not Selected - PSU : - Not Selected - Chassis : - Not Selected - What would you like to do? =================================================== Here are all available components of type 'cpu': 1. Intel core i3-10100 ================ 2. Intel core i5-10600k ================ 3. Intel core i7-10700k ================ 4. Intel core i3-12100f ================ 5. Intel core i5-12600k ================ 6. Intel core i7-12700k ================ 7. AMD Ryzen 3 3200G ================ 8. AMD Ryzen 5 5600X ================ 9. AMD Ryzen 7 5800X ================ 10. AMD Ryzen 5 7600X ================ 11. AMD Ryzen 7 7700X ================ 12. AMD Ryzen 9 7950X ================ 13. Intel Core i2-11350 ================ 14. Intel Core i5-10400F ================ 15. Intel Core i9-10950K ================ 16. Intel Core i3-12260 ================ 17. Intel Core i7-12850 ================ 18. Intel Core i9-13900K ================ 19. AMD Ryzen 3 3300X ================ 20. AMD Ryzen 5 5500 ================
- Expected output:
- List cpu components that are filtered by price by using
list cpu -price /from 0 /to 200
.- Expected output:
=================================================== PC builder Custom-PC: [newPC] - $0.0/$1000.00 - Incomplete Power Consumption: 0.0W/0W Components: CPU : - Not Selected - CPU Cooler : - Not Selected - GPU : - Not Selected - Motherboard: - Not Selected - RAM : - Not Selected - Storage : - Not Selected - PSU : - Not Selected - Chassis : - Not Selected - What would you like to do? =================================================== Here are all available components of type 'cpu': meeting the following criteria: price: 0 to 200 1. Intel core i3-10100 ================ 2. Intel core i5-10600k ================ 4. Intel core i3-12100f ================ 7. AMD Ryzen 3 3200G ================ 8. AMD Ryzen 5 5600X ================ 13. Intel Core i2-11350 ================ 14. Intel Core i5-10400F ================ 16. Intel Core i3-12260 ================ 19. AMD Ryzen 3 3300X ================ 20. AMD Ryzen 5 5500 ================
- Expected output:
- Select cpu by using
select cpu 1
.- Expected output:
=================================================== PC builder Custom-PC: [newPC] - $99.5/$1000.00 - Incomplete Power Consumption: 65.0W/0W Components: CPU : Intel core i3-10100 CPU Cooler : - Not Selected - GPU : - Not Selected - Motherboard: - Not Selected - RAM : - Not Selected - Storage : - Not Selected - PSU : - Not Selected - Chassis : - Not Selected - What would you like to do? =================================================== cpu added! : Intel core i3-10100
- Expected output:
- Select compatible motherboard by using
select motherboard 1
.- Expected output:
=================================================== PC builder Custom-PC: [newPC] - $221.49/$1000.00 - Incomplete Power Consumption: 110.0W/0W Components: CPU : Intel core i3-10100 CPU Cooler : - Not Selected - GPU : - Not Selected - Motherboard: Asus Prime Z590-P WiFi RAM : - Not Selected - Storage : - Not Selected - PSU : - Not Selected - Chassis : - Not Selected - What would you like to do? =================================================== motherboard added! : Asus Prime Z590-P WiFi
- Expected output:
- Unselect cpu by using
unselect cpu
.- Expected output:
=================================================== PC builder Custom-PC: [newPC] - $121.99/$1000.00 - Incomplete Power Consumption: 45.0W/0W Components: CPU : - Not Selected - CPU Cooler : - Not Selected - GPU : - Not Selected - Motherboard: Asus Prime Z590-P WiFi RAM : - Not Selected - Storage : - Not Selected - PSU : - Not Selected - Chassis : - Not Selected - What would you like to do? =================================================== cpu removed!
- Expected output:
- Compare two motherboard components by using
compare motherboard 2 & 7
.- Expected output:
=================================================== PC builder Custom-PC: [newPC] - $121.99/$1000.00 - Incomplete Power Consumption: 45.0W/0W Components: CPU : - Not Selected - CPU Cooler : - Not Selected - GPU : - Not Selected - Motherboard: Asus Prime Z590-P WiFi RAM : - Not Selected - Storage : - Not Selected - PSU : - Not Selected - Chassis : - Not Selected - What would you like to do? =================================================== ________________________________________________________________________________________________ |NAME |MSI MAG Z690 TOMAHAWK WIFI DDR4 |MSI B550M PRO-VDH WIFI | |------------|----------------------------------------|----------------------------------------| |PRICE |$239.99 |$119.99 | |SOCKET |LGA1700 |AM4 | |FORM FACTOR |atx |micro | |POWER |47.0W |43.0W | ________________________________________________________________________________________________
- Expected output:
- Change the Name of the build by using
name notNewPC
.- Expected output:
=================================================== PC builder Custom-PC: [notNewPC] - $121.99/$1000.00 - Incomplete Power Consumption: 45.0W/0W Components: CPU : - Not Selected - CPU Cooler : - Not Selected - GPU : - Not Selected - Motherboard: Asus Prime Z590-P WiFi RAM : - Not Selected - Storage : - Not Selected - PSU : - Not Selected - Chassis : - Not Selected - What would you like to do? =================================================== Current build name is now: notNewPC
- Expected output:
- Add custom cpu to the build by using
custom cpu Intel-new-cpu|Intel|99.5|4|8|3.5|4.6|122|LGA1200
.- Expected output:
=================================================== PC builder Custom-PC: [notNewPC] - $221.49/$1000.00 - Incomplete Power Consumption: 167.0W/0W Components: CPU : Intel-new-cpu CPU Cooler : - Not Selected - GPU : - Not Selected - Motherboard: Asus Prime Z590-P WiFi RAM : - Not Selected - Storage : - Not Selected - PSU : - Not Selected - Chassis : - Not Selected - What would you like to do? =================================================== CPU added: Intel-new-cpu
- Expected output:
- Go back to the viewer menu by using
back
.- Expected output:
=================================================== PC viewer Here is the list of PC Builds: 1.Prebuilt-PC: [beginner] - $917.28/infinite - Complete 2.Prebuilt-PC: [intermediate] - $1710.74/infinite - Complete 3.Prebuilt-PC: [expert] - $2339.74/infinite - Complete 4.Custom-PC: [notNewPC] - $221.49/$1000.00 - Incomplete What would you like to do? =================================================== returned to PCViewer
- Expected output:
- Filter the available PC builds to see only incomplete builds by using
filter -built incomplete
.- Expected output:
=================================================== PC viewer Here is the filtered list of PC Builds: 4.Custom-PC: [notNewPC] - $221.49/$1000.00 - Incomplete What would you like to do? =================================================== Filter completed
- Expected output:
- Use
bye
to exit program.- Expected output:
=================================================== PC viewer Here is the list of PC Builds: 1.Prebuilt-PC: [beginner] - $917.28/infinite - Complete 2.Prebuilt-PC: [intermediate] - $1710.74/infinite - Complete 3.Prebuilt-PC: [expert] - $2339.74/infinite - Complete 4.Custom-PC: [notNewPC] - $221.49/$1000.00 - Incomplete What would you like to do? =================================================== Bye. Hope to see you again soon!
- Expected output:
